產品名稱：

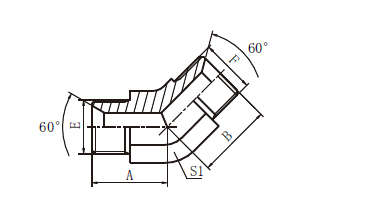

英管外螺紋60°內錐 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺 紋 | 尺 寸 | |||||
| E | F | A | B | S1 | |||
| A3-02/4 | G1/8"X28 | G1/8"X28 | 17 | 17 | 11 | ||
| A3-04/4 | G1/4"X19 | G1/4"X19 | 20.3 | 20.3 | 14 | ||
| A3-06/4 | G3/8"X19 | G3/8"X19 | 22 | 22 | 16 | ||
| A3-08/4 | G1/2"X14 | G1/2"X14 | 27 | 27 | 22 | ||
| A3-12/4 | G3/4"X14 | G3/4"X14 | 31 | 31 | 27 | ||
| A3-16/4 | G1"X11 | G1"X11 | 35 | 35 | 33 | ||
| A3-20/4 | G1.1/4"X11 | G1.1/4"X11 | 38.5 | 38.5 | 41 | ||
| A3-24/4 | G1.1/2"X11 | G1.1/2"X11 | 44 | 44 | 48 | ||
| A3-32/4 | G2"X11 | G2"X11 | 51 | 51 | 63 | ||
